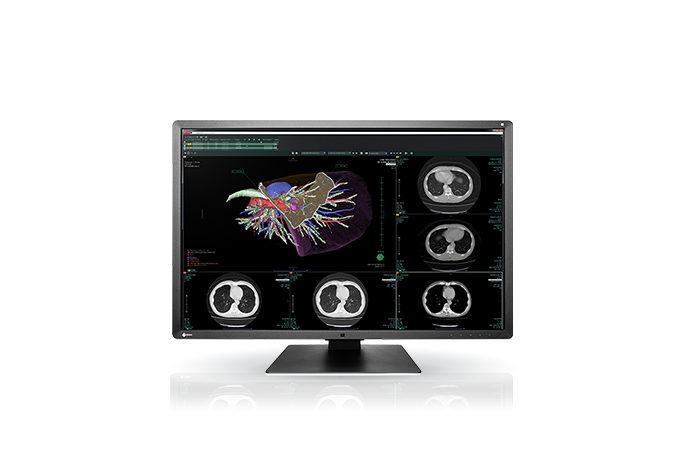

RX660 – Precise medical image viewing
A 6 megapixel monitor ideal for viewing a variety of medical images at the same time including CR, DR, CT, MRI, and ultrasound.
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. This gives it greater accuracy and reliability than the conventional area-detection method.
With the Switch-and-Go function USB switching is done within the monitor. This enables users to use a single keyboard and mouse across two PCs.
The size of the power supply was greatly reduced and now comes built into the monitor
The monitor is equipped with DisplayPort 1.2 input and output terminals. Using a single cable connected to the input terminal, the monitor displays 6 megapixel resolution. In addition, using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.
The monitor is equipped with Picture by Picture (PbyP) to allow you to view input from two separate video signals on a single screen.
In addition, the monitor’s slim bezels offers a more comfortable multi-monitor layout for viewing images side-by-side for seamless viewing.
EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments.
AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting.
AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14.
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.
Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.
The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.
A presence sensor prompts the monitor to switch to power save mode when the user is away and resumes operation upon their return to conserve power when not in use.
